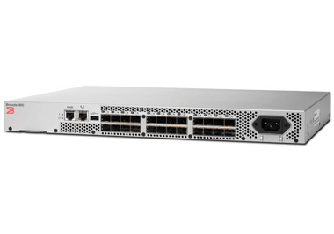

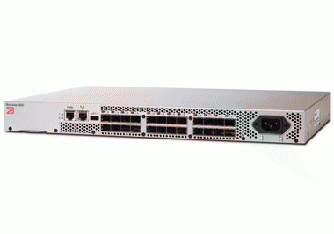

Brocade 300是一款24端口交換機，可為入門級SAN奠定經濟而靈活的基礎，也可在核心到邊緣SAN環境中用作邊緣交換機。它可以在高能效、經過優化的1U機型中提供8 Gbps的性能，來支持最苛刻的服務器和虛擬服務器部署。

1.概述

Brocade 300是一款吞吐量達8 Gbit/秒的光纖通道交換機，是專為小型SAN或大型SAN邊緣設計的經濟型入門級解決方案。它使中小型企業可以簡化IT基礎設施，提高系統性能，最大限度地發揮虛擬服務器部署的價值并降低總體存儲成本。

經濟合算的SAN技術

Brocade 300能夠以入門級解決方案的價格提高卓越的性能和強大的功能。它將1、2、4和8 Gbit/秒的光纖通道吞吐量自動偵測與旨在增強光纖架構性能的功能結合在一起。Brocade 300能夠提供如此強大的功能，而每端口的功耗還不到2.5瓦，因此，具有出色的功率和冷卻效率。

Brocade 300采用了一種無阻塞架構，最多支持24個端口同時以8 Gbit/秒（全雙工）的速率運行，并且不會出現超量使用現象——總帶寬為192 GB/秒。另外，增強的Brocade ISL干線合并還可以支持最高吞吐量達64 GB/秒的單一邏輯高速干線。

簡化的管理

借助Brocade EZSwitchSetup安裝向?qū)?，可以輕松便捷地安裝和配置Brocade 300，交換機的配置、部署和管理變成了簡單的三步點擊操作。在多交換機環境中，博科網絡顧問軟件（Brocade Network Advisor）可提供全面的數據中心Fabric架構管理功能，包括博科骨干網、交換機和適配器的配置、監控和管理。Brocade 300 可兼容Microsoft Simple SAN，另外還帶有一個可通過簡化固件升級和系統日志文件下載來提高維護簡便性和錯誤記錄的USB端口。

簡單快捷的擴展

Brocade 300易于部署和管理，并且可以輕松集成到新的和現有的IT環境中。Brocade 300具有按需端口擴展（Ports on Demand）（端口可由8個擴展至16或24個）等多種功能，因此，企業可以根據需要隨時擴展自己的存儲網絡而不會影響業務正常運行。另外，企業可以先部署4 Gbit/秒的SFP，然后根據需要升級為8 Gbit/秒的SFP。

高級連接選項

Brocade 5100可作為一款全光纖交換機或作為一款Brocade Access Gateway（接入網關）進行部署，能提供到任一SAN網絡的連接（其默認模式設置是一款交換機）。接入網關模式采用N_Port ID虛擬化（NPIV）交換機標準，可將光纖通道連接作為邏輯設備提呈到SAN Fabric架構中。如果利用支持NPIV技術的交換機和導向器進行連接，接入網關模式下的Brocade 300可以連接到Brocade、McDATA或其它SAN Fabric架構。

Brocade光收發模塊

Brocade 8 Gbit/sec交換機需要Brocade光收發模塊。這種模塊有多種型號，可以滿足不同的速度和距離要求。這些小型可插拔（SFP）模塊最適合用于Brocade 8Gbit/sec產品，可以最大限度地提高性能，降低功耗，幫助確保關鍵任務應用的最高可用性。

行業標準遵從

Brocade產品符合行業標準，而且采用了普遍接受的工程實踐和流程。

2.特性

• 為入門級SAN提供價格合理的基礎設備

• 在一個1U機架中為最多24個端口提供8 Gbit/秒的1：1性能

• 借助Brocade EZSwitchSetup安裝向?qū)Ш?jiǎn)化配置和管理，并且可以與Microsoft Simple SAN兼容

• 包括Brocade Network Advisor Professional（博科網絡顧問軟件專業版），可實現多交換機監控和管理

• 提供“邊增長邊付費”式可擴展性，利用按需端口擴展（PoD）功能將端口數量從8個擴展到16或24個

• 提供雙功能，既可作為全光纖SAN交換機，也可以用作支持N_Port ID Virtualization（NPIV）的Brocade接入網關設備

• 提供適應性網絡服務，如服務質量（QoS），幫助企業優化整合虛擬環境中的應用性能

• 借助1、2、4和8 Gbit/秒自動偵測功能，保護現有設備投資

• 將帶寬增長與功耗降低結合起來，提高能效

• 面向未來的投資保護，使企業可以先部署4 Gbps SFP，然后在需要時升級到8 Gbps SFP+

3.規格

Systems Architecture

Fibre Channel ports

• Switch mode (default): 8-, 16-, and 24-port configurations (8-port increments through Ports on Demand licenses); universal (E, F, M, FL) ports

• Access Gateway Default Port Mapping: 16 F_Ports, 8 N_Ports

Scalability

• Full fabric architecture with 239 switches maximum

Certified maximum

• Single Brocade FOS fabric: 56 domains, 19 hops

• Single Brocade M-EOS fabric: 31 domains, 3 hops

• Larger fabrics certified as required; consult Brocade or OEM SAN design documents for configuration details

Performance

• 1.063 Gbit/sec line speed, full duplex; 2.125 Gbit/sec line speed, full duplex; 4.25 Gbit/sec line speed, full duplex; 8.5 Gbit/sec line speed, full duplex; auto-sensing of 1, 2, 4, and 8 Gbit/sec port speeds; optionally programmable to fixed port speed; speed matching between 1, 2, 4, and 8 Gbit/sec ports

ISL Trunking

• Frame-based trunking with up to eight 8 Gbit/sec ports per ISL trunk with optional license; up to 64 Gbit/sec per ISL trunk (8 ports × 8 Gbit/sec [data rate])

• Exchange-based load balancing across ISLs with DPS included in Fabric OS

Aggregate bandwidth

• 192 Gbit/sec: 24 ports × 8 Gbit/sec (data rate)

Maximum fabric latency

• 700 ns with no contention, cut-through routing at 8 Gbit/sec

Maximum frame size

• 2112-byte payload

Frame buffers

• 700 dynamically allocated, 484 maximum per port

Classes of service

• Class 2, C lass 3, C lass F (inter-switch frames)

Port types

• FL_Port, F_Port, M_Port (Mirror Port), and E_Port; self-discovery based on switch type (U_Port); optional port type control

• Brocade Access Gateway mode: F_Port and NPIV-enabled N_Port

Data traffic types

• Fabric switches supporting unicast, multicast (255 groups) and broadcast

Media types

• 8 Gbit/sec: Requires Brocade hot-pluggable SFP+, LC connector; 8 Gbit/sec Short-Wavelength Laser (SWL); 8 Gbit/sec Long-Wavelength Laser (LWL); distance depends on fiber-optic cable and port speed

• 4 Gbit/sec: Requires Brocade hot-pluggable, Small Form-factor Pluggable (SFP), LC connector; 4 Gbit/sec Short-Wavelength Laser (SWL); 4 Gbit/sec Long-Wavelength Laser (LWL); 4 Gbit/sec Extended Long-Wavelength Laser (ELWL); distance depends on fiber-optic cable and port speed

USB

• 1 USB port for firmware download, support save, and configuration upload/download

Fabric services

Note: Some fabric services do not apply or are unavailable in Brocade Access Gateway mode

• Simple Name Server (SNS); Registered State Change Notification (RSCN); NTP v3; Reliable Commit Service (RCS); Dynamic Path Selection (DPS); Brocade Advanced Zoning (default zoning, port/WW N zoning, broadcast zoning); NPIV; N_Port Trunking; FDMI; Management Server; FSPF; Fabric Watch; Extended Fabrics; ISL Trunking; Advanced Performance Monitoring; Adaptive Networking (per data flow QoS, Ingress Rate Limiting, Traffic Isolation, Top Talkers; licensing varies); IPoFC, Integrated Routing; Frame Redirection; Port Fencing; BB credit recovery

Options

• Rack-mount rail kits (fixed, slide, mid-mount)

Management

Management

• HTTP, SNMP v1/v3 (FE MIB, FC Management MIB), Telnet; Auditing, Change Management tracking, Syslog; Brocade Advanced Web Tools, Brocade Fabric Watch; EZSwitchSetup wizard, Brocade Data Center Fabric Manager (DCFM), Brocade Fabric Manager (optional, FOS environments only), Brocade EFCM 9.x (optional), command line interface; SMI-S compliant, SMI-S scripting toolkit; Administrative Domains; trial licenses for add-on capabilities

Security

• DH-CHAP (between switches and end devices), HTTPS, IPsec, IP Filtering, LDAP, Port Binding, RADIUS, Role-Based Access Control (RBAC), Secure Copy (SCP), Secure RPC, SSH v2, SSL, Switch Binding, Trusted Switch

Management access

• 10/100 Ethernet (RJ-45), in-band over Fibre Channel; serial port (RJ-45); USB; call-home integration enabled through Brocade EFCM and Brocade Fabric Manager

Diagnostics

• POST and embedded online/offline diagnostics, including RAStrace logging, environmental monitoring, non-disruptive daemon restart, FCping and Pathinfo (FC traceroute), port mirroring (SPAN port)

Mechanical

Enclosure

• Non-port to port side airflow; 1U, 19-inch EIA-compliant, power from port side

Size

• Width: 42.88 cm (16.88 in)

• Height: 4.29 cm (1.69 in)

• Depth: 30.66 cm (12.07 in)

System weight

• 4.2 kg (9.30 lbs), without SFP/SFP+ media

Environment

Temperature

• Operating: 0°C to 40°C (32°F to 104°F)

• Non-operating and storage: -25°C to 70°C (-13°F to 158°F)

Humidity

• Operating: 10% to 85% non-condensing

• Non-operating and storage: 10% to 95% non-condensing

Altitude

• Operating: Up to 3000 meters (9842 feet)

• Non-operating and Storage: Up to 12 km (39,370 feet)

Shock

• Operating: 20 g, 6 ms half-sine

• Non-operating and storage: Half sine, 33 g 11 ms, 3/eg Axis

Vibration

• Operating: 0.5 g sine, 0.4 grms random, 5 to 500 Hz

• Non-operating and storage: 2.0 g sine, 1.1 grms random, 5 to 500 Hz

Heat dissipation

• Maximum 24 ports: 195 BTU/hr

CO2 emissions

• 210 kg per year (with 16 ports at 0.42 kg/kWh)

• 1.09 kg per Gbit/sec per year

Airflow

• Maximum 23 C FM (cu. ft./min.); nominal 18 C FM

Power

Power supply

• Single, fixed power supply

Power inlet

• C13

Input voltage

• 85 to 264 VAC nominal

Frequency

• 47 to 63 Hz

Power consumption

• Nominal 48 watts; maximum 57 watts with 24 ports at 8 Gbit/sec
