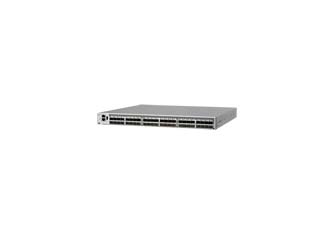

Brocade 6510是一款48端口高性能企業級交換機，可通過市場領先的Gen 5 Fibre Channel（16 Gbps）技術滿足高度虛擬化的私有云存儲環境的各種需求。Brocade 6510交換機可在設計高效的1U產品包中提供最高的靈活性、操作簡便性和可靠性。
1.概述
面向私有云存儲的靈活、簡便易用的企業級SAN交換機
為滿足不斷增長的業務需求，數據中心正遷移到高度虛擬化的私有云存儲環境。這種方法使企業可以整合并簡化IT資源，進而提高業務靈活性并降低資本支出和運營支出。但伴隨虛擬化而來的還有一系列挑戰。數據中心必須適應爆炸性數據增長和虛擬化工作負載帶來的動態變化。要實現這些基于云的架構的全部?jī)?yōu)勢，選擇適當?shù)木W(wǎng)絡是關鍵。
Brocade 6510交換機可交付市場領先的Gen 5 Fibre Channel（16 Gbps）技術和支持高度虛擬化環境的先進功能，進而滿足超大規模私有云存儲環境的需求。Brocade 6510設計用于實現最高的靈活性和可靠性，支持24、36或48端口配置，而且可在高效的1U包裝中支持2、4、8、10或16 Gbps的速度。
簡化的部署流程和點擊式用戶界面使Brocade 6510更加強大而且簡便易用。Brocade 6510可幫助以很低的成本獲得行業領先的存儲區域網絡（SAN）技術的優勢，同時提供“邊增長邊付費”式可擴展性，來滿足不斷發展演進的存儲環境的各種需求。
其它主要特性包括：
提供超高的性價比，在面向虛擬化數據中心和私有云架構的48端口交換機中結合出色的靈活性、簡便性和企業級功能
利用按需端口擴展（PoD）功能，快速、簡單而經濟高效地從24個端口擴展到48個
利用Brocade EZSwitchSetup向?qū)Ш?jiǎn)化部署
借助動態Fabric架構配置（DFP）、關鍵性能監控和高級診斷特性加快部署和故障排除，縮短時間
借助冗余、可熱插拔組件和平滑的軟件升級最大限度地提高可用性
提供雙重功能，既可用作功能全面的Fabric SAN交換機，又可用作支持NPIV的Brocade Access Gateway，進而簡化服務器連接，提高SAN可擴展性
通過Brocade Network Advisor（博科網絡顧問軟件）簡化并集中進行管理，降低運營成本和復雜性
2.特性
超高的性價比
采用Gen 5 Fibre Channel技術的Brocade 6510將市場領先的吞吐量和經濟的交換機設計完美地結合起來，可提供超高的性價比來應對不斷增長的SAN工作負載。48個端口可提供總共768 Gbps的全雙工吞吐量；可將任意8個端口捆綁起來，形成128 Gbps的互聯鏈路捆綁（Inter-Switch Link，ISL）?；诮粨Q的動態路徑選擇（DPS）可以優化全Fabric架構的性能，并通過自動將數據路由到Fabric架構內最高效的空閑路徑上來實現負載均衡。它可以進一步補充Brocade ISL鏈路捆綁，在特定配置中提供更有效的負載均衡。
此外，24端口的基本配置易于管理，只占用1U的機架空間而且能耗很低——每Gbps為0.14瓦，每端口為2.3瓦，因此總體擁有成本（TCO）很低。企業級功能與很低的TCO相結合，與成本相當?shù)耐惼渌f(wàn)兆以太網（10 GbE）解決方案相比可提供高40%的性能。
業界領先的技術
Brocade 6510在靈活、簡單而且簡便易用的解決方案中提供行業領先的SAN技術?；九渲冒?4個端口，可根據需要最多擴展到48個端口。除了提供最高的可擴展性之外，Brocade 6510還可以通過Brocade EZSwitchSetup向?qū)Ш涂珊?jiǎn)化設置的全新“D_Port”特性來實現輕松部署。為實現最高的靈活性，該交換機還采用了1U高的外殼，深度不足18英寸，提供雙向通風選項，可支持最新的熱通道/冷通道（hot aisle/cold aisle）配置。
虛擬化私有云存儲的有機組成部分
Brocade 6510為當前高度虛擬化的私有云存儲環境提供了一個關鍵組件。它可以簡化服務器虛擬化和虛擬桌面基礎架構（VDI）管理，同時滿足固態硬盤（SSD）的高吞吐量需求。Brocade 6510還可以通過Virtual Fabrics、QoS和基于Fabric架構的分區特性支持多租戶（multi-tenancy）。
Brocade 6510可支持10 Gbps密波分復用（DWDM）鏈路、“In-flight”加密和ISL上的數據壓縮，進而安全地將城域網擴展為虛擬私有云或混合云。企業可通過每臺Brocade 6510交換機獲得最多4個8 Gbps端口和2個16 Gbps端口，來支持“In-flight”加密和數據壓縮。該交換機還支持On-board數據安全性和加速，從而最大限度地減小部署獨立的加速設備來支持遠距離擴展的需求。內部容錯和企業級RAS特性可幫助最大限度地減少故障停機，來支持關鍵任務云環境。
Brocade Access Gateway模式
Brocade 6510可作為功能全面的Fabric架構交換機或作為Brocade Access Gateway（接入網關）進行部署，來簡化Fabric架構拓?fù)浜彤悩?gòu)Fabric架構連接（其默認模式設置是交換機）。Brocade Access Gateway模式利用N_Port ID Virtualization（NPIV）交換機標準來直接向SAN Fabric架構的核心顯示物理和虛擬服務器。這使它對SAN Fabric架構完全透明，因此可大大減輕網絡邊緣的管理工作。以Brocade Access Gateway模式*運行的Brocade 6510可以將服務器連接到支持NPIV的Brocade B系列、Brocade M系列或其它SAN Fabric架構。
企業可以通過Brocade Network Advisor（博科網絡顧問軟件）或CLI輕松實現Brocade Access Gateway模式。Brocade Access Gateway模式的主要優勢包括：
更高的可擴展性，適合大型或快速增長的服務器和虛擬服務器環境
減少網絡邊緣的管理工作，因?yàn)锽rocade Access Gateway沒有域身份，在核心Fabric架構看來是完全透明的
支持異構SAN配置，而不減少服務器連接功能
在高性能交換機中提供企業級特性
Brocade 6510具有高級監控、診斷和RAS功能，可最大限度地提高可用性，優化性能并簡化管理。這些企業級特性包括：
關鍵的診斷和監控功能，可幫助確保盡早完成故障檢測和恢復
在每個端口上支持平滑、非破壞性監控，提供整個Fabric架構的端到端視圖
前向糾錯（FEC）可從ISL中的位錯誤中恢復，進而增強傳輸可靠性和性能
額外的緩沖器，可避免緩沖信用丟失導致的性能降低和擁塞
在ISL上根據主機/應用進行實時帶寬消耗量計算，輕松識別熱點和潛在的網絡擁塞
Brocade 6510的Access Gateway模式僅在48端口配置中受支持。
3.規格
| System Architecture | |
|---|---|
| Fibre Channel ports | Switch mode (default): 24-, 36-, and 48-port configurations (12-port increments through Ports on Demand [PoD] licenses); (E, F, M, D, EX) ports Access Gateway default port mapping: 40 F_Ports, 8 N_Ports |
| Scalability | Full fabric architecture with a maximum of 239 switches |
| Certified maximum | 6000 active nodes; 56 switches, 19 hops in Brocade Fabric OS? fabrics; 31 switches; larger fabrics certified as required |
| Performance | Auto-sensing of 2, 4, 8, and 16 Gbps port speeds; 10 Gbps and optionally programmable to fixed port speed. |
| ISL trunking | Frame-based trunking with up to eight 16 Gbps ports per ISL trunk; up to 128 Gbps per ISL trunk. Exchange-based load balancing across ISLs with DPS included in Brocade Fabric OS. There is no limit to how many trunk groups can be configured in the switch. |
| Aggregate bandwidth | 768 Gbps end-to-end full duplex |
| Maximum fabric latency | Latency for locally switched ports is 700 ns; encryption/compression is 5.5 μsec per node; Forward Error Correction (FEC) adds 400 ns between E_Ports (enabled by default). |
| Maximum frame size | 2112 byte payload |
| Frame buffers | 8192 dynamically allocated |
| Classes of service | Class 2, Class 3, Class F (inter-switch frames) |
| Port types | D_Port (Diagnostic Port), E_Port, EX_Port, F_Port, M_Port (Mirror Port); optional port type control Brocade Access Gateway mode: F_Port and NPIV-enabled N_Port |
| Data traffic types | Fabric switches supporting unicast |
| Media types | Hot-pluggable, industry-standard Small Form-Factor Pluggable (SFP+), LC connector; Short-Wavelength (SWL), Long-Wavelength (LWL); Extended Long-Wavelength (ELWL); distance depends on fiber optic cable and port speed. Supports SFP+ (2, 4, 8, 10, 16 Gbps) optical transceivers. |
| USB | One USB port for system log file downloads or firmware upgrades |
| Fabric services Note: Some fabric services do not apply or are unavailable in Brocade Access Gateway mode | Brocade Advanced Performance Monitoring (including Top Talkers for E_Ports, F_Ports, and Fabric mode); Brocade Adaptive Networking (Ingress Rate Limiting, Traffic Isolation, QoS); Bottleneck Detection; Brocade Advanced Zoning (default zoning, port/WWN zoning, broadcast zoning); Dynamic Fabric Provisioning (DFP); Dynamic Path Selection (DPS); Brocade Extended Fabrics; Enhanced BB credit recovery; Brocade Fabric Watch; FDMI; Frame Redirection; Frame-based Trunking; FSPF; Integrated Routing; IPoFC; Brocade ISL Trunking; Management Server; NPIV; NTP v3; Port Fencing; Registered State Change Notification (RSCN); Reliable Commit Service (RCS); Server Application Optimization (SAO); Simple Name Server (SNS); Virtual Fabrics (Logical Switch, Logical Fabric) |
| Extension | Fibre Channel, in-flight compression (Brocade LZO) and encryption (AES-GCM-256); integrated 10 Gbps Fibre Channel for DWDM MAN connectivity |
| Management | |
| Supported management software | HTTP, SNMP v1/v3 (FE MIB, FC Management MIB), SSH; Auditing, Syslog; Brocade Advanced Web Tools, Advanced Performance Monitoring, Brocade Fabric Watch; Brocade Network Advisor SAN Enterprise or Brocade Network Advisor SAN Professional/Professional Plus; Command Line Interface (CLI); SMI-S compliant; Administrative Domains; trial licenses for add-on capabilities |
| Security | AES-GCM-256 encryption on ISLs; DH-CHAP (between switches and end devices), FCAP switch authentication; FIPS 140-2 L2-compliant, HTTPS, IPsec, IP filtering, LDAP with IPv6, Port Binding, RADIUS, User-defined Role-Based Access Control (RBAC), Secure Copy (SCP), Secure RPC, SFTP, SSH v2, SSL, Switch Binding, Trusted Switch |
| Management access | 10/100 Mbps Ethernet (RJ-45), in-band over Fibre Channel, serial port (RJ-45), and one USB port |
| Diagnostics | D_Port offline diagnostics, including electrical/optical loopback, link traffic/latency/distance; POST and embedded online/offline diagnostics, including environmental monitoring, FCping and Pathinfo (FC traceroute), frame viewer, non-disruptive daemon restart, port mirroring, optics health monitoring, power monitoring, RAStrace logging, and Rolling Reboot Detection (RRD) |
| Mechanical | |
| Enclosure | Front-to-back airflow; power from back, 1U Back-to-front airflow; power from back, 1U |
| Size | Width: 437.64 mm (17.23 in.) Height: 43.18 mm (1.7 in.) Depth: 443.23 mm (17.45 in.) |
| System weight | 9.16 kg (20.20 lb) with two power supply FRUs, without transceivers |
| Environment | |
| Operating environment | Temperature: 0°C to 40°C/32°F to 104°F Humidity: 10% to 85% (non-condensing) |
| Non-operating environment | Temperature: -25°C to 70°C/-13°F to 158°F Humidity: 10% to 90% (non-condensing) |
| Operating altitude | Up to 3000 m (9842 ft) |
| Storage altitude | Up to 12 km (39,370 ft) |
| Shock | Operating: Up to 20 G, 6 ms half-sine Non-operating: Half sine, 33 G 11 ms, 3/eg axis |
| Vibration | Operating: 0.5 g sine, 0.4 grms random, 5 to 500 Hz Non-operating: 2.0 g sine, 1.1 grms random, 5 to 500 Hz |
| Heat dissipation | 48 ports at 338 BTU/hr |
| Power | |
| Power supply | Dual, hot-swappable redundant power supplies with integrated system cooling fans |
| AC input | 85 V to 264 V ~5 A to 2.5 A |
| Input line frequency | 47 Hz to 63 Hz |
| Power consumption | 110 watts with all 48 ports populated with 16 Gbps SWL optics 72 watts for empty chassis with no optics |
