企業解決方案，帶有16個用于交換和路由的光纖通道端口和2個用于基于IP的SAN和大型機擴展的千兆以太網端口。

1.概述

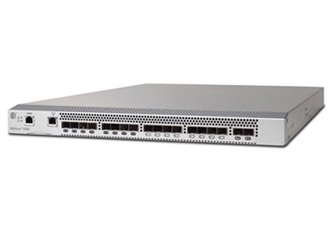

Brocade 7500集業界領先的光纖通道交換、路由功能和強大的硬件輔助IP光纖通道（FCIP）流量轉發功能于一身。該交換機帶有16個4 Gbit/sec光纖通道端口和2個千兆以太網端口，可提供很高的性能，使存儲應用不論采用哪種協議都可以以線速運行。

通過將這些服務集成到單一平臺中，Brocade 7500可提供廣泛的數據中心連接優勢，其中包括SAN擴展、遠距離擴展、更廣泛的資源共享以及管理的簡化。

通過支持Fast Write、Tape Pipelining功能和業界獨一無二的Brocade FICON加速器，Brocade 7500交換機提供了業界最強大的跨IP WAN的光纖通道和FICON SAN擴展解決方案。這些功能可與Brocade存儲優化的TCP、基于硬件的壓縮、IPSec加密、Committed Rate（承諾速率）、流量隔離、干線合并及網絡負載共享等特性一同提供。因此，它提供了一種高性能、高可靠性、安全的遠距離連接解決方案，幫助實施業務連續性、站點鏡像、復制和跨超遠距離的數據遷移等戰略性計劃。

若要了解用于數據中心擴展、交換和路由的刀片解決方案，請參閱Brocade 48000導向器和Brocade DCX Backbone系列產品使用的Brocade FR4-18i SAN Extension Blad。

端到端高性能和可靠性

Brocade光收發模塊有多種型號，可以滿足不同的速度和距離要求。這些小型可插拔（SFP）模塊最適合用于Brocade存儲聯網產品，可以最有效地提高性能，降低功耗，幫助確保關鍵任務應用的最高可用性。

SAN標準遵從性

博科產品以符合公認工程方案和流程的方式，達成了與行業標準的一致。

2.特性

• 提供了一款適用于企業整合、數據移動性和業務連續性解決方案的企業級構建模塊，從而提高效率并節省成本

• 將FCIP擴展與光纖通道交換和路由功能相結合，在隔離Fabric架構和IP WAN網絡的同時提供數據中心連接

• 通過Fast Write、業界獨一無二的Brocade FICON加速器（包括模擬和讀/寫Tape Pipelining）及基于硬件的壓縮等功能，優化基于光纖通道和FCIP的遠距離SAN擴展的應用性能

• 利用Committed Rate（承諾速率）、流量隔離、干線合并和網絡負載平衡等服務最大限度地提高帶寬利用率

• 通過IPSec加密實現跨IP WAN的安全連接

• 與Brocade交換機、路由器及Brocade DCX Backbone系列互操作，提供更高的可擴展性、性能和更有效的投資保護

• 簡化異構數據中心環境的互連與支持

3.規格

Systems Architecture

Ports

• 18 ports: 16 Fibre Channel (E, F, FL, EX) ports and 2 Gigabit Ethernet (VE, VEX) ports

Performance

• Fibre Channel: 1.063, 2.125, and 4.250 Gbit/sec line speed, full duplex; auto-sensing of 1, 2, and 4 Gbit/sec port speeds; optionally programmable to fixed port speed; speed matching between 1, 2, and 4 Gbit/sec ports

• Ethernet: 1.25 Gbit/sec

Fibre Channel aggregate bandwidth

• 128 Gbit/sec (16 x 8 Gbit/sec data rate)

IP WAN aggregate bandwidth

• Two Gigabit Ethernet ports each supporting eight FCIP tunnels up to 1 Gbit/sec for an aggregate bandwidth of 2 Gbit/sec

Fabric latency

• < 8 microseconds (FC-to-FC routed traffic) 30 microseconds (FCIP)

Maximum frame size

• 2112-byte payload for Fibre Channel, 2250-byte payload for Gigabit Ethernet, 2048-byte payload for Fibre Channel routed networks

Classes of service

• Class 2 and 3

Port types

• FL_Port, F_Port, EX_Port, and E_Port; self discovery based on switch type (U_Port); Gigabit Ethernet for VE and VEX

Media types

Hot-pluggable, industry-standard Small Form-factor Pluggable (SFP), LC connector

Fibre Channel and Gigabit Ethernet ports:
Short-Wavelength Laser (SWL) up to 300 meters (984) feet);

Fibre Channel ports only:
Long-Wavelength Laser (LWL) up to 10 km (6.2 mi);
Extended Long-Wavelength Laser (ELWL) up to 30 km (18.6 mi);
Certified third-party CWDM SFPs up to 80 km (50 mi)

Gigabit Ethernet ports only:
RJ-45 Copper SFP
Distance depends on fiber-optic cable and port speed

Fabric services

Simple Name Server, Registered State Change Notification (RSCN), Brocade FC-FC Routing Service, Brocade Advanced Zoning, and Brocade Web Tools, FCIP Tunneling Service, Brocade Advanced ISL Trunking, Brocade Accelerator for FICON, Advanced Performance Monitoring, Traffic Isolation, Brocade Advanced Zoning (default zoning, port/WWN zoning, broadcast zoning), Dynamic Path Selection (DPS), Extended Fabrics, Fabric Watch, FDMI, Frame Redirection, FSPF, IPoFC, Management Server, N_Port Trunking, NPIV, NTP v3, Port Fencing, Reliable Commit Service (RCS), Simple Name Server (SNS).

FIPS certification

• FIPS 140-2 Level 2-compliant package available

Management

Supported management software

Telnet, SSH, HTTP, SNMP v1/v3 (FE MIB, FC Management MIB), Auditing, Syslog, Brocade Advanced Web Tools, Brocade Fabric Watch, Brocade Data Center Fabric Manager (DCFM) Enterprise (Brocade DCX, DCX-4S) or DCFM Professional (Brocade DCX-4S only), Brocade Fabric Manager (optional, FOS environments only), Brocade EFCM 9.x (optional), command line interface, Administrative Domains, trial licenses for add-on capabilities, third-party applications utilizing the Brocade SMI-S Agent.

Security

DH-CHAP (between switches and end devices), FIPS 140-2 L2-compliant, HTTPS, IPsec, IP filtering, LDAP, Port Binding, RADIUS, Role-Based Access Control (RBAC), Secure Copy (SCP), Secure RPC, SSH v2, SSL, Switch Binding, Trusted Switch.

Management access

10, 100 Mbit/sec Ethernet (RJ-45), serial port, in-band management via Gigabit Ethernet WAN ports

Diagnostics

• POST and embedded online/offline diagnostics

Mechanicals

Enclosure

• Non-cable-side to cable-side airflow; power from cable-side; 1U, 19-in.-EIA-rack-compliant

Size

• Width: 42.87 cm (16.88 in)

• Height: 4.30 cm (1.69 in)

• Depth: 64.56 cm (25.40 in)

System weight

• 13.7 kg (30.2 lb) with two power supplies, no SFPs

Environmentals

Temperature

• Operating: 10° to 40°C

• Non-operating: –25°C to 70°C

Humidity

• Operating: 20 to 85%, non-condensing

• Non-operating: 20 to 85%, non-condensing

Altitude

• 3 km

Shock

• Operating: 105 G, 2.5 ms, half-sine

• Non-operating: 40 G, 13 ms, trapezoidal

Vibration

• Operating: 0.5 G (5–500–5Hz)

• Non-operating: 2.0 G (5–500–5Hz)

Heat dissipation

• 730 BTU per hour

CO2 emissions

• 846 kg per year

Power

AC input

• 2.2 A for 100-120 VAC

• 1.2 A for 200-220 VAC

Frequency

• 47 to 63 Hz
